StarTech Rackmount PDU with 8 Outlets and Surge Protection – 1U

Rackmount PDU with 8 Outlets and Surge Protection – 1U

At A Glance

• Integrated 6ft power cord
• LED indicators for ground and surge detection
• Illuminated reset and power switch
• Meets ANSI/EIA RS-310-D standards
• Built in circuit breaker
• Solid Steel Chassis for durability

This 8-outlet (120V 15A)(12A UL) Rack PDU delivers a cost-effective power distribution solution for your server rack/cabinet. The 1U PDU can be mounted horizontally in any server rack 4in in depth or greater, to provide eight 120V 15A power ports/outlets, and features a rugged steel casing to ensure maximum durability.

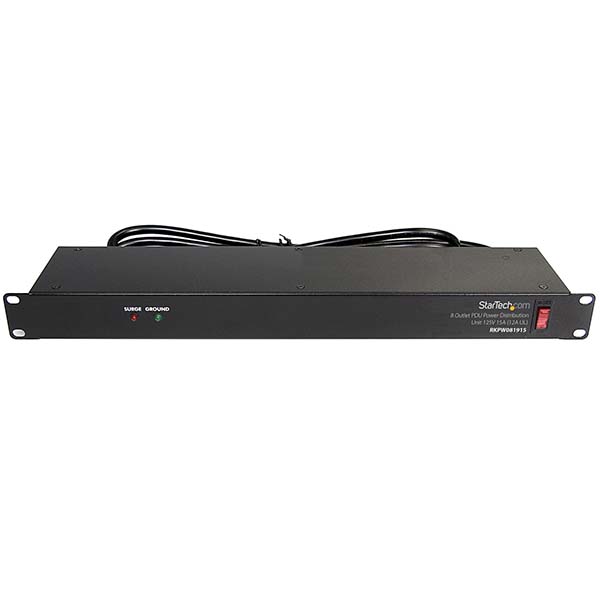

The front of the PDU features two LEDs to indicate proper ground and surge detection while enabling you to control the power state with an illuminated power/reset switch.

To prevent costly breakdowns of connected devices, the rackmount PDU features a built-in circuit breaker and reset switch, ensuring dependable performance of vital equipment.

Specifications

• Input Connector(s): 1 – NEMA 5-15 Power
• Output Connectors: 8 – NEMA 5-15 Power
• Operating Temperature: -5°C to 45°C (23°F to 113°F)
• Storage Temperature: -25°C to 65°C (-13°F to 149°F)
• Form Factor: Horizontal
• Number of Power Outlets: 8
• Rack-Mountable: Yes
• Maximum Total Current: 15A
• Maximum Total Current Draw per Phase: 15A
• Regulatory Derated Input Current: 12A
• Nominal Input Voltage: 120V
• Nominal Output Voltage: 120V
• Maximum Output Voltage: 125V
• Load Capacity: 1800 VA
• General Specifications: Surge Protection: 1800 Joules
• Color: Black
• Material: Steel
• Cable Length: 6.0 ft [1.8 m]
• Product Length: 19.0 in [48.3 cm]
• Product Width: 3.8 in [95.5 mm]
• Product Height: 1.7 in [4.3 cm]
