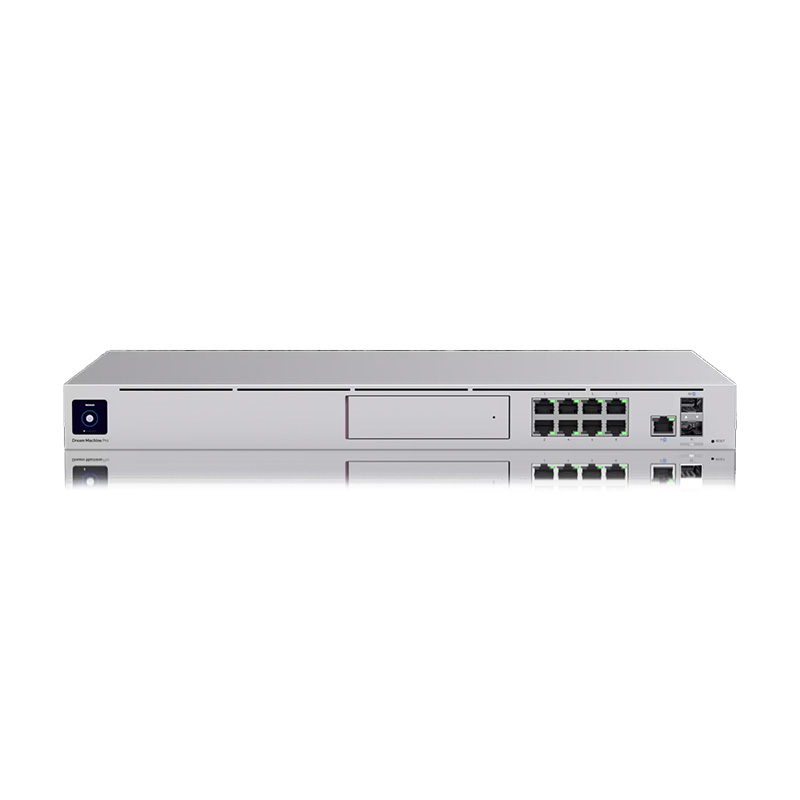

UniFi Dream Machine Professional UDM-Pro

UniFi Dream Machine Professional UDM-Pro

Technical Specifications

Mechanical

• Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″)
• Weight: 8.6 lb
• Enclosure Materials: Aluminium CNC, SGCC steel
• Mount Material: SGCC Steel

Hardware

• Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
• System Memory: 4 GB DDR4
• On-board Storage: 16 GB eMMC
• Management Interface: Ethernet | Bluetooth
• Networking Interface: (8) LAN: GbE RJ45 Ports | (1) WAN: GbE RJ45 port
• SFP+ Interface: (1) LAN: 10G SFP+ | (1) WAN: 10G SFP+
• IDS/IPS Throughput: 3.5 Gbps* (*Measured with iPerf3)
• Power Method: (1) Universal AC Input, 100—240V AC, 50/60 Hz | (1) USP-RPS DC Input
• Power Supply: AC/DC, internal, 50W
• Supported Voltage Range: 100—240V AC
• Max. Power Consumption: 33W
• ESD/EMP Protection: Air: ± 15kV, Contact: ± 8kV
• LCM Display: (1) 1.3″ Touchscreen
• Button: Factory Reset
• Operating Temperature: -10 to 40° C (14 to 104° F)
• Operating Humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC

LEDs

• Ethernet: Link/activity | Green: 1G | Amber: 10/100M
• SFP+: Link/activity| Green: 1G | Amber: 10/100M
• HDD: White: disk activity | Amber: disk error
• RPS: Blue: ready
