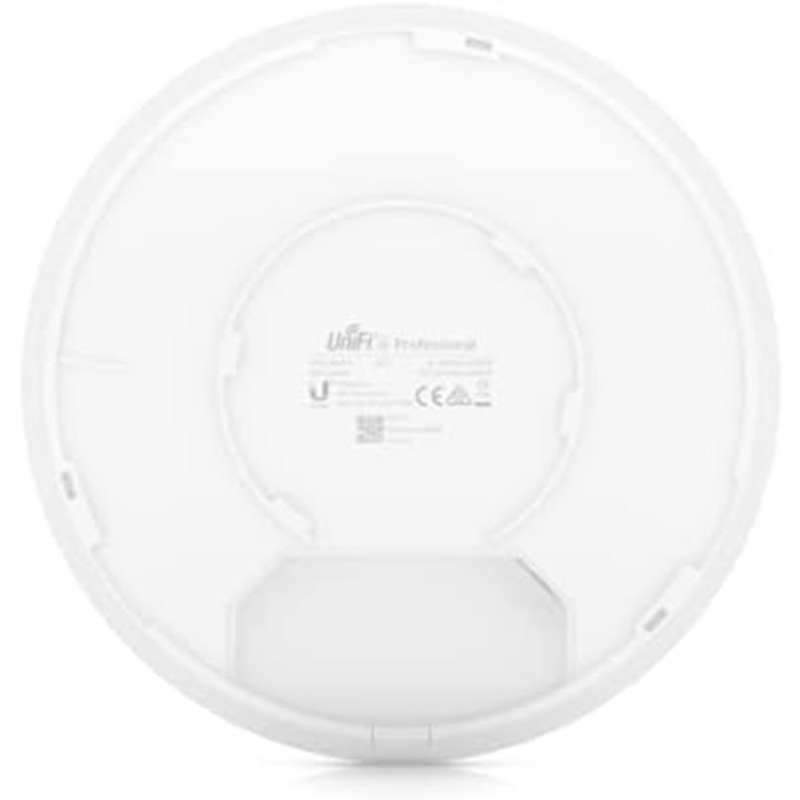

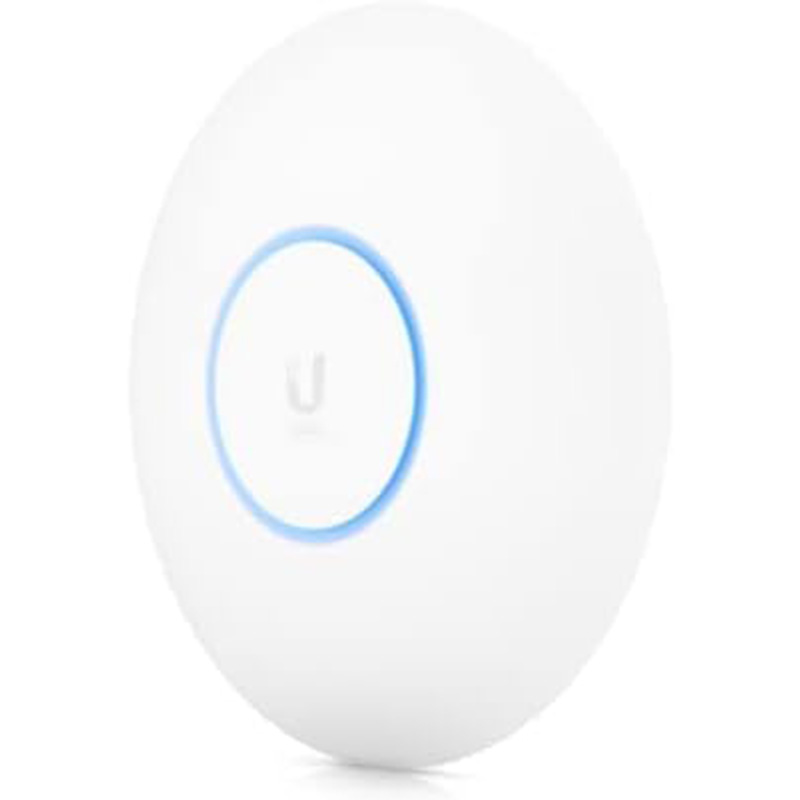

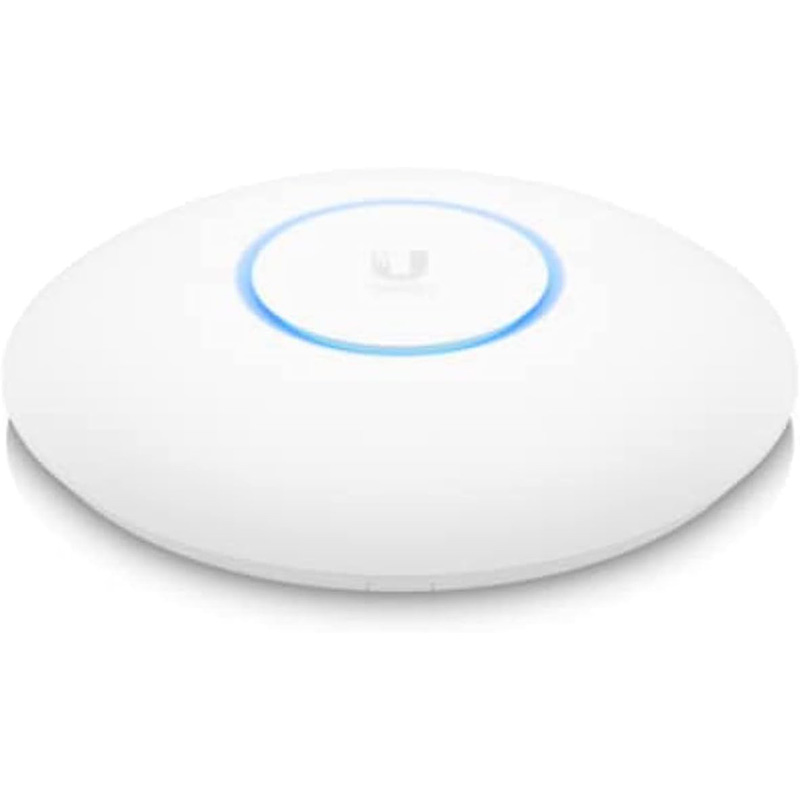

Ubiquiti UniFi 6 Pro Access Point (U6-Pro)

Ubiquiti UniFi 6 Pro Access Point

Mechanical

• Dimensions: Ø197 x 35 mm (Ø7.76 x 1.38″)
• Weight Without Mount: 460 g (1.01 lb)
• Weight With Mount: 600 g (1.32 lb)
• Enclosure Material: Polycarbonate
• Mount Material: Stainless Steel (SUS304)
• Weatherproofing: IP54

Hardware

• Networking interface: (1) GbE RJ45 port
• Management interface: Ethernet | Bluetooth
• Power method: PoE
• Power supply: UniFi PoE switch | 48V, 0.5A PoE adapter (Not included)
• Supported voltage range: 44—57V DC
• Max. power consumption: 13W
• Max. TX power: 2.4 GHz: 22 dBm | 5 GHz: 26 dBm
• MIMO: 2.4 GHz: 2 x 2 (UL MU-MIMO) | 5 GHz 4 x 4 (DL/UL MU-MIMO)
• Throughput rate: 2.4 GHz: 573.5 Mbps | 5 GHz: 4.8 Gbps
• Antenna gain: 2.4 GHz: 4 dBi | 5 GHz: 6 dBi
• LEDs: White/blue
• Button: Factory reset
• Mounting: Wall/ceiling (Included)
• Operating temperature: -30 to 60° C (-22 to 140° F)
• Operating humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC

Software

• WiFi standards: 802.11a/b/g | WiFi 4/WiFi 5/WiFi 6
• Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3
• BSSID: 8 per radio
• VLAN: 802.1Q
• Advanced QoS: Per-user rate limiting
• Guest traffic isolation: Supported
• Concurrent clients: 350+
• Zero wait DFS: Yes*

Supported Data Rates

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
• 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)

Application Requirements

• UniFi Network: Version 6.1.56 and later
