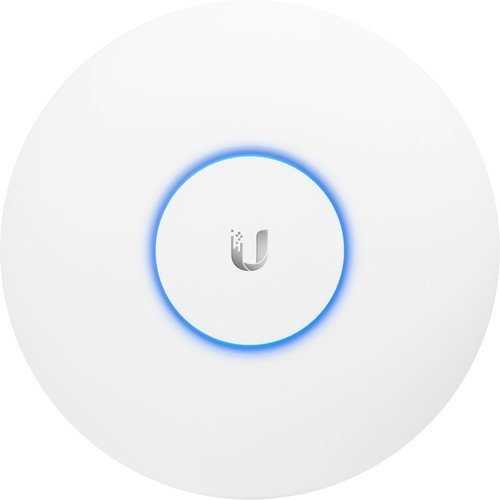

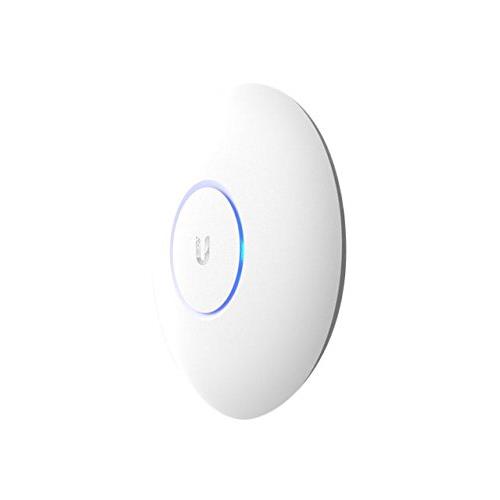

Ubiquiti Networks Unifi 802.11ac Dual-Radio PRO Access Point
Mechanical
- Dimensions: 196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38″)
- Weight: Without Mounting Kit: 350 g (12.4 oz), With Mounting Kit: 450 g (15.9 oz)
Hardware

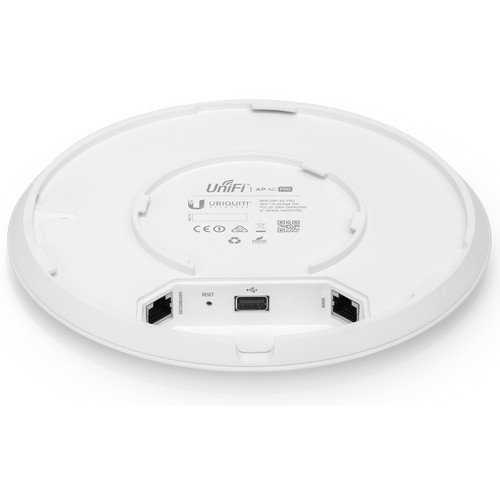

- Networking Interface: (2) 10/100/1000 Ethernet Ports
- Ports: (2) 10/100/1000 Ethernet, (1) USB 2.0
- Button: Reset
- Antennas: (3) Dual-Band Antennas
- Max. TX Power: 22 dBm
- Power Method: Passive PoE (48V), PoE+ Supported
- Power Supply: 48V, 0.5A PoE Gigabit Adapter (Included)*
- Supported Voltage Range: 44 to 57VDC
- Maximum Power Consumption: 9W
- Mounting: Wall/Ceiling (Kits Included)
- Operating Temperature: -10 to 70° C (14 to 158° F)
- Operating Humidity: 5 to 95% Noncondensing
Software
- WiFi Standards: 802.11 a/b/g/n/ac
- Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
- BSSID: Up to Four per Radio
- VLAN: 802.1Q
- Advanced QoS: Per-User Rate Limiting
- Guest Traffic Isolation: Supported
- Power Save: Supported
- WMM: Voice, Video, Best Effort, and Background
- Concurrent Clients: 125+
Supported Data Rates (Mbps)
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
- 802.11ac: 6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80)
