OREI HDMI over Ethernet Extender Over CAT5/CAT6/CAT7

OREI HDMI over Ethernet Extender Over CAT5/CAT6/CAT7

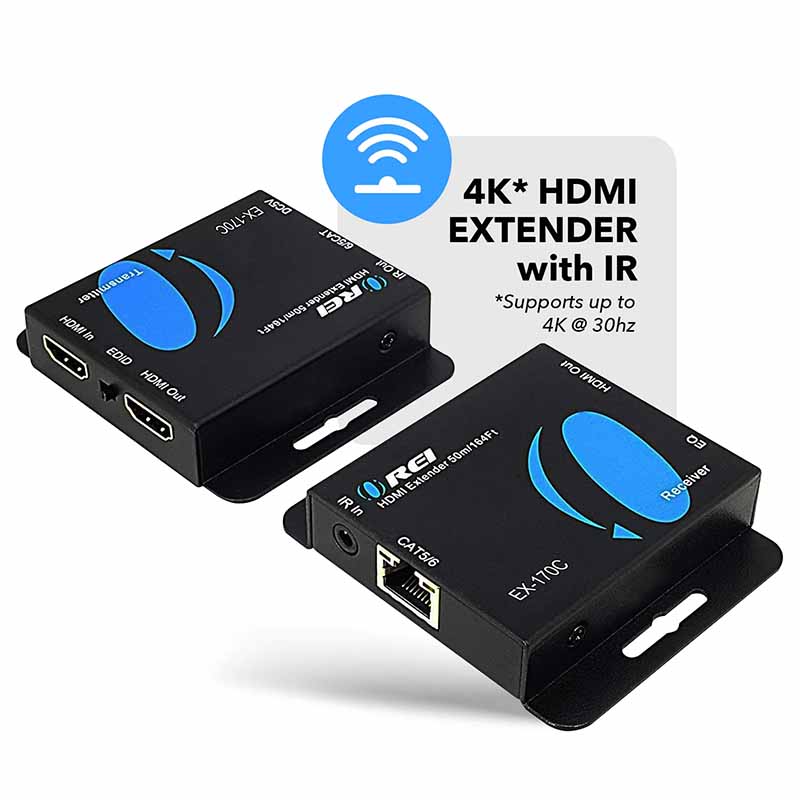

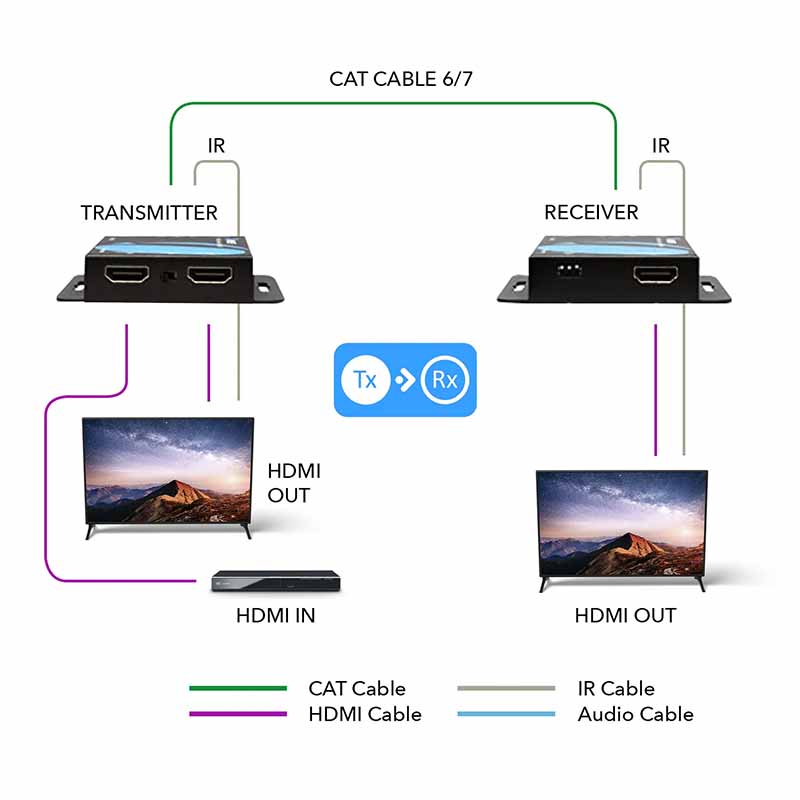

Extends 4K@30Hz 4:2:0 HDMI audio/video signals over Cat6/7 cable up to 165 feet (50m) with EDID Management | IR control enables source device to recognize remote commands from the remote display, Lossless transmission with Zero Latency.

Supported resolution: up to 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz & Supported Audio: LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio, essentially all available audio options are supported.

AUDIO/VIDEO

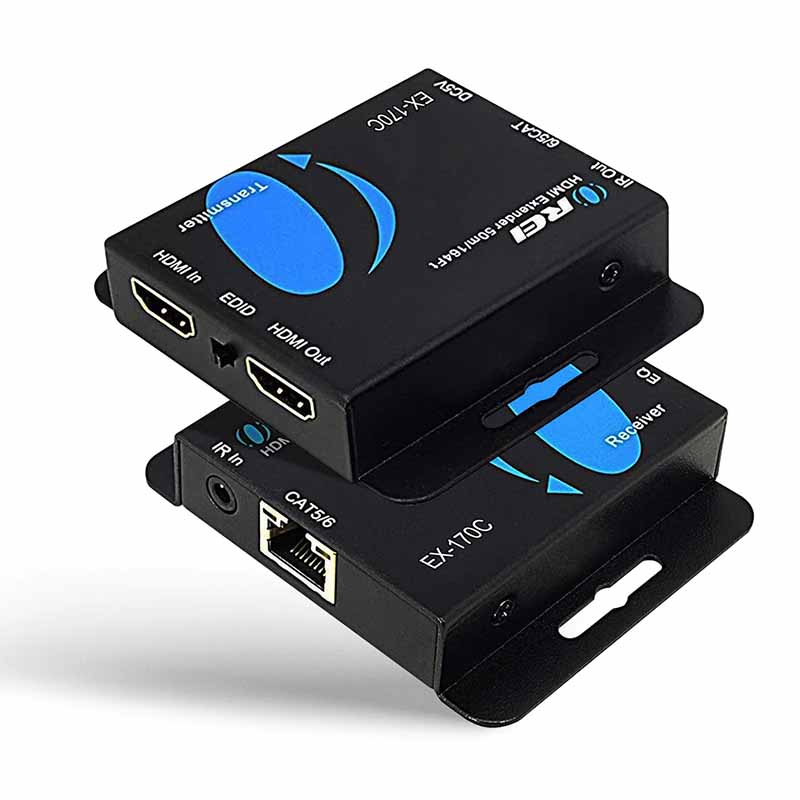

Transmitter:

• INPUT PORTS: 1 x HDMI Type A [19-pin female]
• OUTPUT PORTS: 1 x HDMI Type A [19-pin female] | 1 x IR OUT [3.5mm Stereo Mini-jack] | 1 x CAT OUT [RJ45, 8-pin female]

Receiver:

• INPUT PORTS: 1x IR IN [3.5mm Stereo Mini-jack]
• 1x CAT IN [RJ45, 8-pin female]
• OUTPUT PORTS: 1x HDMI Type A [19-pin female]

COMPLIANCES

• HDMI Compliance HDMI 1.4
• HDCP Compliance HDCP 1.4

SUPPORTED CAT CABLES

• CAT5e, CAT6, CAT7: We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

VIDEO OUTPUT

• Video Bandwidth: Single-link 165Mhz [4.95 Gbps]
• Video Resolutions: Up to 1080p@60Hz
• Color Space: RGB, YCbCr_4:4:4/4:2:2. YUV_4:2:0
• Color Depth: 8bit
