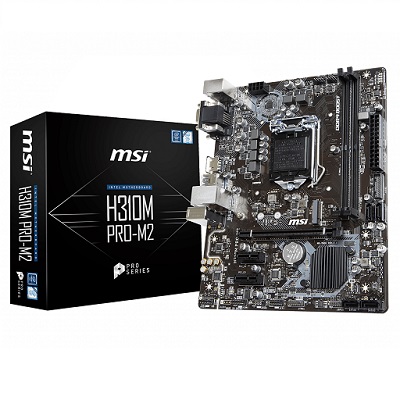

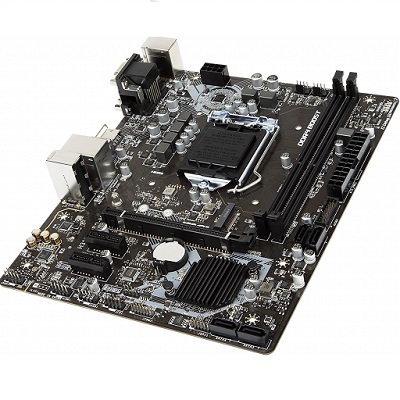

MSI H310M PRO-M2 Mainboard

MSI H310M PRO-M2 Mainboard

Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI PRO SERIES motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable and long-lasting top performance
PROCESSOR
Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
CHIPSET
Intel® H310 Chipset
MEMORY
2 x DDR4 memory slots, support up to 32GB
Supports DDR4 2666/ 2400/ 2133 MHz
SLOTS
1 x PCIe 3.0 x16 slot
2 x PCIe 2.0 x1 slots

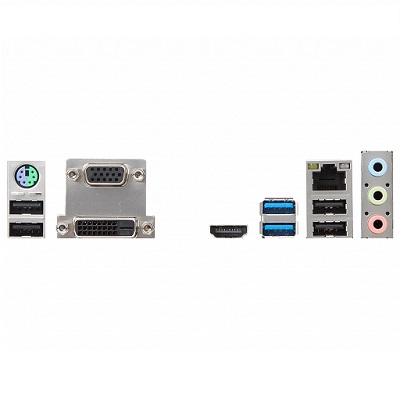

ONBOARD GRAPHICS
1x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz
1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
1x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz
STORAGE
4 x SATA 6Gb/s ports
1 x M.2 slot (Key M)
Support up to PCIe 2.0 x4 and SATA 6Gb/s
Supports 2242/ 2260 /2280 storage devices
USB
Intel® H310 Chipset
4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
AUDIO
Realtek® ALC887 Codec
7.1-Channel High Definition Audio
LAN
1 x Intel I219-V Gigabit LAN controller
INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
1 x Serial port connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
