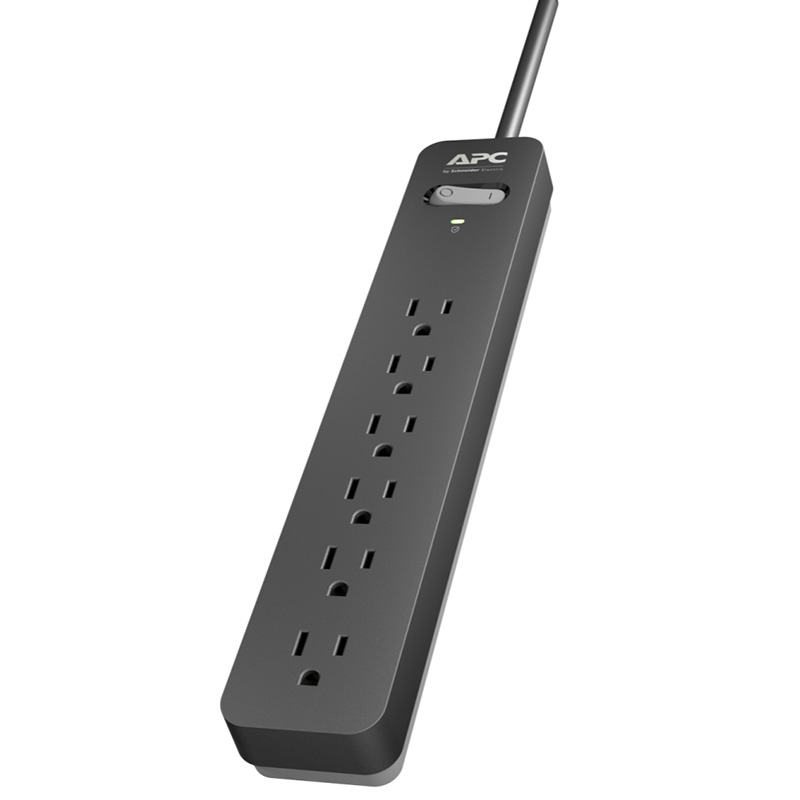

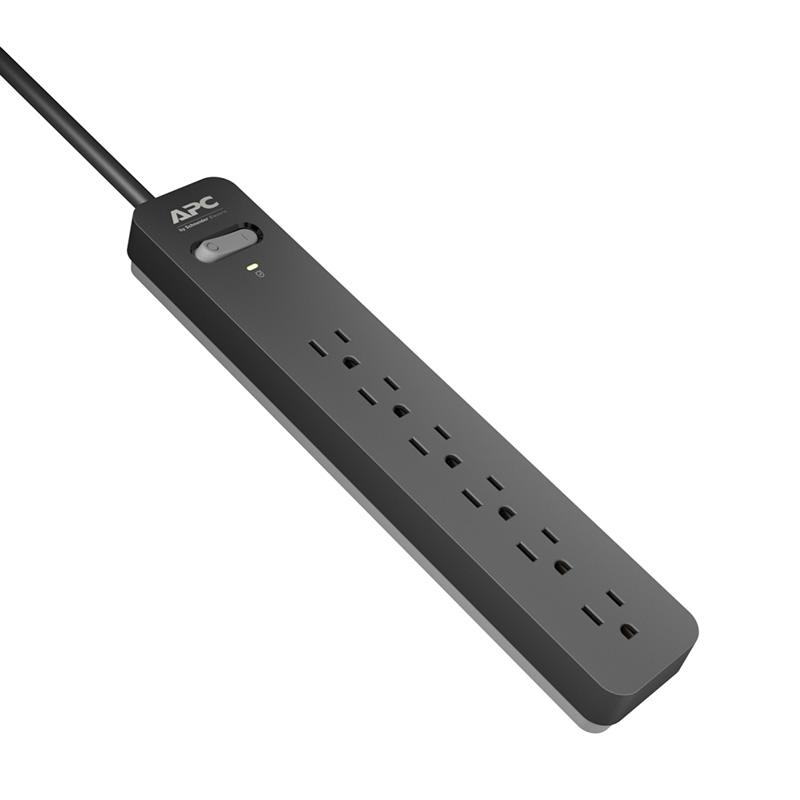

APC PE63 Surge Arrest

APC PE63 Surge Arrest

Reliable and Safe Protection from Lightning, Surges, and Spikes

The APC SurgeArrest Essential series represents the primary level of surge protection that should be present on any of your computers and household electronics. Its state-of-the-art circuitry offers protection for sensitive electronic equipment against larger power surges and more common power fluctuations.

Six surge protected outlets, status indicator LED lights, and lifetime Equipment Protection Policy make the APC PE63 SurgeArrest the best value for quality surge protection.

Main

• Main Input Voltage: 120 V
• Input Connection Type: NEMA 5-15P
• Cable length: 3 ft (0.91 m)
• Number of cables: 1
• Provided equipment: User Manual

Physical

• Color: Black Gray
• Height: 1.18 in (3 cm)
• Width: 2.05 in (5.2 cm)
• Depth: 11.02 in (28 cm)
• Net Weight: 0.79 lb(US) (0.36 kg)
• Mounting preference: No preference
• Mounting Mode: Not rack-mountable

Input

• Input power: 1200 W
• Maximum Line Current per phase: 15 A
• Input Frequency: 50/60 Hz
• Maximum Input Current per Phase: 15 A
• Switching current capacity: 15 A

Surge Protection and Filtering

• NM Surge Response Time (ns): 1 ns common mode
• EMI/RFI Noise rejection (100 kHz to 10 MHz): 40 dB
• Peak current: 24 kA common mode | 12 kA normal mode
• Surge energy rating: 540 J
