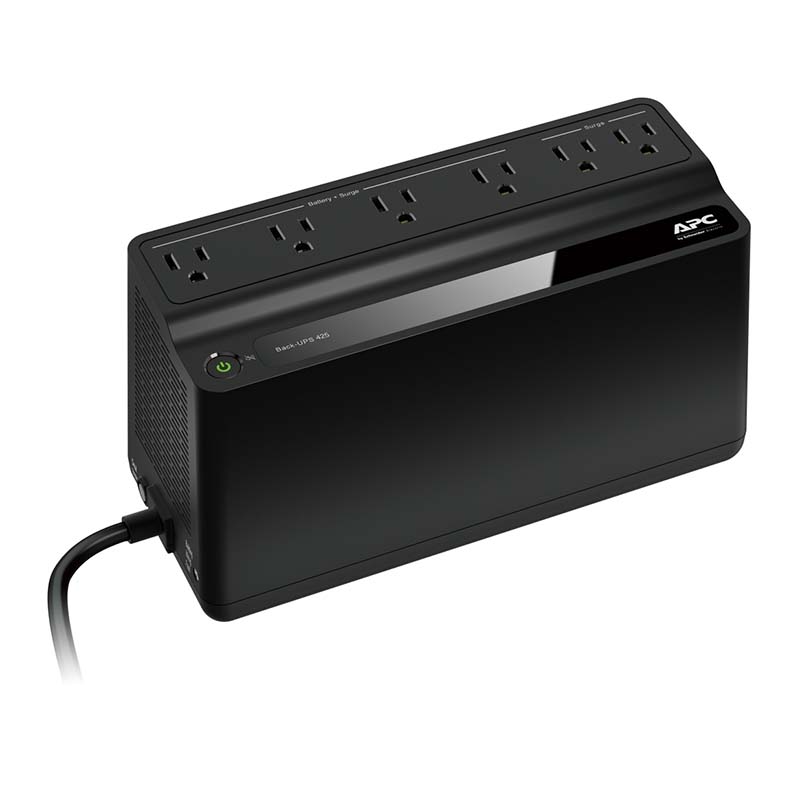

APC Back-UPS 425VA (BE425M)

APC Back-UPS 425VA (BE425M)

The side of this 425VA UPS includes 2 keyhole sockets to easily mount the battery backup on a wall in hard to reach installations. The outlets are arranged with spaces to accommodate both average sized power plugs and transformer block power plugs.

Main

• Output power Capacity: 255 Watts / 425VA
• Max Configurable Power (Watts): 255 Watts / 425VA
• Output Frequency: 50/60 Hz +/- 3 Hz sync to mains
• Battery Type: Lead-Acid Battery
• Battery Recharge Time: 8 h
• Output Connections: 4 NEMA 5-15R | 2 NEMA 5-15R Surge
• Cable Length: 1.52 m

Physical

• Color: Black
• Height: 14.02 cm
• Width: 25.35 cm
• Depth: 10.5 cm

Input

• Network frequency: 50/60 Hz +/- 3 Hz auto-sensing
• Input voltage limits: 88…139 V
• Maximum input current: 5 A
• Switching current capacity: 7 A

Output

• Maximum configurable power in W: 255 W
• Output frequency: 50/60 Hz +/- 3 Hz sync to mains
• UPS type: Standby
• Wave type: Square wave
• Graph start point: 10
• Maximum configurable power in VA: 425 VA
• Transfer time: 6 ms typical : 10 ms maximum

Packing Units

• Unit Type of Package 1: PCE
• Number of Units in Package 1: 1
• Package 1 Height: 22 cm
• Package 1 Width: 14 cm
• Package 1 Length: 31.5 cm
• Package 1 Weight: 3 kg
